Desain Class dengan Java
Seperti pada hakikat desain, desain class di Java juga berguna agar program kita lebih mudah dipahami, tahan lama, dan fleksibel. “Loose Coupling, High Cohesion” merupakan prinsip developer dalam membuat sebuah software.
Coupling (kopling) adalah derajat
ketergantungan suatu class terhadapa class lainnya. Loose Copling bertujuan
agar ketika ada class yang ingin diubah / dihapus, hal tersebut tidak akan
terlalu mempengaruhi class yang lain.
Sedangkan Cohesion (kohesi) adalah
keterikatan antar fungsi dalam sebuah class. High Cohesion berguna agar method
dalam class tersebut memiliki fungsi yang serupa untuk satu tanggung jawab.
Desain class yang tidak baik biasanya dapat
dibuat dalam waktu yang singkat, tapi untuk kedepannya desain tersebut tidak
akan bias bertahan lama karena desain yang tidak baik (tidak fleksibel) akan kalah
dengan software dengan desain yang baik karena akan sering mengalami
pembaharuan serta pembenahan bug.
Untuk itu, kali ini kita akan mencoba
membuat sebuah game yang bernama “World of Zuul”, yang terdiri dari beberapa
class:
Dengan source code Class Game:
1. /**
2. * Class ini membuat dan menginialisasi semua
hal
3. * Class ini membuat semua room, parser, serta
memulai game
4. * Class ini juga mengevaluasi commands yang direturn
parser
5. *
6. * @author Aufi Fillah
7. * @version 1.0
8. */
9. public class Game
10. {
11. private Parser parser;
12. private Room currentRoom;
13.
14. /**
15. * Create the game and
initialise its internal map.
16. */
17. public Game()
18. {
19. createRooms();
20. parser = new Parser();
21. }
22.
23. /**
24. * Create all the rooms and link
their exits together.
25. */
26. private void createRooms()
27. {
28. Room outside, theater,
pub, lab, office;
29.
30. // create the rooms
31. outside = new
Room("outside the main entrance of the
university");
32. theater = new
Room("in a lecture theater");
33. pub = new
Room("in the campus pub");
34. lab = new
Room("in a computing lab");
35. office = new
Room("in the computing admin office");
36.
37. // initialise room exits
38. outside.setExits(null, theater, lab, pub);
39. theater.setExits(null, null, null, outside);
40. pub.setExits(null, outside, null, null);
41. lab.setExits(outside, office, null, null);
42. office.setExits(null, null, null, lab);
43.
44. currentRoom = outside; // start game outside
45. }
46.
47. /**
48. * Main play routine.
Loops until end of play.
49. */
50. public void play()
51. {
52. printWelcome();
53.
54. // Enter the main command loop. Here we
repeatedly read commands and
55. // execute them until the game is over.
56.
57. boolean finished = false;
58. while (! finished) {
59. Command
command = parser.getCommand();
60. finished = processCommand(command);
61. }
62. System.out.println("Thank you
for playing. Good bye.");
63. }
64.
65. /**
66. * Print out the opening message
for the player.
67. */
68. private void printWelcome()
69. {
70. System.out.println();
71. System.out.println("Welcome to
the World of Zuul!");
72. System.out.println("World of
Zuul is a new, incredibly boring adventure game.");
73. System.out.println("Type
'help' if you need help.");
74. System.out.println();
75. System.out.println("You are
" + currentRoom.getDescription());
76. System.out.print("Exits:
");
77. if(currentRoom.northExit != null) {
78. System.out.print("north
");
79. }
80. if(currentRoom.eastExit != null) {
81. System.out.print("east
");
82. }
83. if(currentRoom.southExit != null) {
84. System.out.print("south
");
85. }
86. if(currentRoom.westExit != null) {
87. System.out.print("west
");
88. }
89. System.out.println();
90. }
91.
92. /**
93. * Given a command, process
(that is: execute) the command.
94. * @param command The command to
be processed.
95. * @return true If the command
ends the game, false otherwise.
96. */
97. private boolean processCommand(Command command)
98. {
99. boolean wantToQuit = false;
100.
101. if(command.isUnknown()) {
102. System.out.println("I don't
know what you mean...");
103. return
false;
104. }
105.
106. String commandWord = command.getCommandWord();
107. if (commandWord.equals("help")) {
108. printHelp();
109. }
110. else if (commandWord.equals("go")) {
111. goRoom(command);
112. }
113. else if (commandWord.equals("quit")) {
114.
wantToQuit = quit(command);
115. }
116.
117. return wantToQuit;
118. }
119.
120. // implementations of user commands:
121.
122. /**
123. * Print out some help
information.
124. * Here we print some stupid,
cryptic message and a list of the
125. * command words.
126. */
127. private void printHelp()
128. {
129. System.out.println("You are
lost. You are alone. You wander");
130. System.out.println("around at
the university.");
131. System.out.println();
132. System.out.println("Your
command words are:");
133. System.out.println(" go
quit help");
134. }
135.
136. /**
137. * Try to go in one direction.
If there is an exit, enter
138. * the new room, otherwise print
an error message.
139. */
140. private void goRoom(Command command)
141. {
142. if(!command.hasSecondWord()) {
143. // if there is no second word, we don't know where
to go...
144. System.out.println("Go
where?");
145. return;
146. }
147.
148. String direction = command.getSecondWord();
149.
150. // Try to leave current room.
151. Room nextRoom = null;
152. if(direction.equals("north")) {
153. nextRoom = currentRoom.northExit;
154. }
155. if(direction.equals("east")) {
156. nextRoom = currentRoom.eastExit;
157. }
158. if(direction.equals("south")) {
159. nextRoom = currentRoom.southExit;
160. }
161. if(direction.equals("west")) {
162. nextRoom = currentRoom.westExit;
163. }
164.
165. if (nextRoom == null) {
166. System.out.println("There is
no door!");
167. }
168. else {
169.
currentRoom = nextRoom;
170. System.out.println("You are
" + currentRoom.getDescription());
171. System.out.print("Exits:
");
172. if(currentRoom.northExit != null) {
173.
System.out.print("north
");
174. }
175. if(currentRoom.eastExit != null) {
176.
System.out.print("east
");
177. }
178. if(currentRoom.southExit != null) {
179.
System.out.print("south
");
180. }
181. if(currentRoom.westExit != null) {
182.
System.out.print("west
");
183. }
184. System.out.println();
185. }
186. }
187.
188. /**
189. * "Quit" was entered.
Check the rest of the command to see
190. * whether we really quit the
game.
191. * @return true, if this command
quits the game, false otherwise.
192. */
193. private boolean quit(Command command)
194. {
195. if(! command.hasSecondWord()) {
196. System.out.println("Quit
what?");
197. return
false;
198. }
199. else {
200. return
true; // signal that we want to quit
201. }
202. }
203. }
Class Game merupakan main class dari game
ini. Class ini mengatur keperluan game kemudian masuk kedalam loop untuk membaca
dan mengeksekeusi commands. Class ini juga berisi code yang mengimplementasikan
setiap user commands.
Lalu ada Class CommandWords dengan source
code:
1. /**
2. *
Class ini menyimpan daftar semua command words
3. *
di dalam game
4. *
Class ini digunakan untuk mengetahui commands ketika user
5. *
mengetik
6. *
7. *
@author (your name)
8. *
@version (a version number or a date)
9. */
10. public class
CommandWords
11. {
12. //
a constant array that holds all valid command words
13. private static final String[] validCommands = {
14.
"go", "quit", "help"
15. };
16.
17. /**
18.
* Constructor - initialise the command words.
19.
*/
20. public CommandWords()
21. {
22.
// nothing to do at the moment...
23. }
24.
25. /**
26.
* Check whether a given String is a valid command word.
27.
* @return true if a given string is a valid command,
28.
* false if it isn't.
29.
*/
30. public boolean isCommand(String aString)
31. {
32.
for(int i = 0; i < validCommands.length; i++) {
33.
if(validCommands[i].equals(aString))
34.
return true;
35.
}
36.
// if we get here, the string was not found in the commands
37.
return false;
38. }
39. }
Class CommandWords mendefinisikan semua
command yang valid dalalm game, yang dilakukan dengan menyimpan sebuah array of
String object yang merepresentasikan command words.
Setelah itu terdapat Class Command dengan
source code:
1. /**
2. *
Class yang menyimpan informasi tentang command yang
3. *
diinput user
4. *
Command berisi 2 word, word pertama berupa perintah dan
5. *
word kedua adalah isi perintah
6. *
7. *
@author Aufi Fillah
8. *
@version 1.0
9. */
10. public class
Command
11. {
12. private String commandWord;
13. private String secondWord;
14.
15. /**
16.
* Create a command object. First and second word must be supplied,
but
17.
* either one (or both) can be null.
18.
* @param firstWord The first word of the command. Null if the
command
19.
*
was not recognised.
20.
* @param secondWord The second word of the command.
21.
*/
22. public Command(String firstWord, String secondWord)
23. {
24.
commandWord = firstWord;
25.
this.secondWord = secondWord;
26. }
27.
28. /**
29.
* Return the command word (the first word) of this command. If the
30.
* command was not understood, the result is null.
31.
* @return The command word.
32.
*/
33. public String getCommandWord()
34. {
35.
return commandWord;
36. }
37.
38. /**
39.
* @return The second word of this command. Returns null if there
was no
40.
* second word.
41.
*/
42. public String getSecondWord()
43. {
44.
return secondWord;
45. }
46.
47. /**
48.
* @return true if this command was not understood.
49.
*/
50. public boolean isUnknown()
51. {
52.
return (commandWord == null);
53. }
54.
55. /**
56.
* @return true if the command has a second word.
57.
*/
58. public boolean hasSecondWord()
59. {
60.
return (secondWord != null);
61. }
62. }
Class Command merepresentasikan sebuah
command yang telah diinput oleh user dan mengecek apakah inputan tersebut valid
atau tidak serta juga berguna untuk mengambil word pertama dan kedua dari
commands.
Lalu ada Class Parser dengan source code:
1. import java.util.Scanner;
2. import java.io.BufferedReader;
3. import java.io.InputStreamReader;
4. import java.util.StringTokenizer;
5. /**
6. *
Class ini membaca user input dan mencoba mendefinisikannya
7. *
sebagai "Adventure" command.
8. *
9. *
@author Aufi Fillah
10. *
@version 1.0
11. */
12. public class
Parser
13. {
14. private CommandWords commands; //
holds all valid command words
15. private Scanner reader;
// source of command input
16.
17. /**
18.
* Create a parser to read from the terminal window.
19.
*/
20. public Parser()
21. {
22.
commands = new CommandWords();
23.
reader = new Scanner(System.in);
24. }
25.
26. /**
27.
* @return The next command from the user.
28.
*/
29. public Command getCommand()
30. {
31.
String inputLine; //
will hold the full input line
32.
String word1 = null;
33.
String word2 = null;
34.
35.
System.out.print(">
"); //
print prompt
36.
37.
inputLine = reader.nextLine();
38.
39.
// Find up to two words on the line.
40.
Scanner tokenizer = new Scanner(inputLine);
41.
if(tokenizer.hasNext()) {
42.
word1 = tokenizer.next(); //
get first word
43.
if(tokenizer.hasNext()) {
44.
word2 = tokenizer.next(); //
get second word
45.
// note: we just
ignore the rest of the input line.
46.
}
47.
}
48.
49.
// Now check whether this word is known. If so, create a command
50.
// with it. If not, create a "null" command (for
unknown command).
51.
if(commands.isCommand(word1)) {
52.
return new
Command(word1, word2);
53.
}
54.
else {
55.
return new
Command(null, word2);
56.
}
57. }
58. }
Class Parser membaca sebuah line input dari
terminal dan mencoba untuk mengkategorikannya sebagai command. Class ini juga
membuat object of class Command yang merepresentasikan command yang diinput.
Yang terakhir ada Class Room dengan source
code:
1. /**
2. *
Class yang merepresentasikan sebuah lokasi dalam game
3. *
4. *
@author Aufi Fillah
5. *
@version 1.0
6. */
7. public class
Room
8. {
9. public String description;
10. public Room northExit;
11. public Room southExit;
12. public Room eastExit;
13. public Room westExit;
14.
15. /**
16.
* Create a room described "description". Initially, it
has
17.
* no exits. "description" is something like "a
kitchen" or
18.
* "an open court yard".
19.
* @param description The room's description.
20.
*/
21. public Room(String description)
22. {
23.
this.description = description;
24. }
25.
26. /**
27.
* Define the exits of this room. Every direction either leads
28.
* to another room or is null (no exit there).
29.
* @param north The north exit.
30.
* @param east The east east.
31.
* @param south The south exit.
32.
* @param west The west exit.
33.
*/
34. public void setExits(Room north, Room east,
Room south, Room west)
35. {
36.
if(north != null)
37.
northExit = north;
38.
if(east != null)
39.
eastExit = east;
40.
if(south != null)
41.
southExit = south;
42.
if(west != null)
43.
westExit = west;
44. }
45.
46. /**
47.
* @return The description of the room.
48.
*/
49. public String getDescription()
50. {
51.
return description;
52. }
53.
54. }
Class ini merepresentasikan lokasi dalam
game yang memiliki jalan keluar yang akan mengarah ke room lainnya.

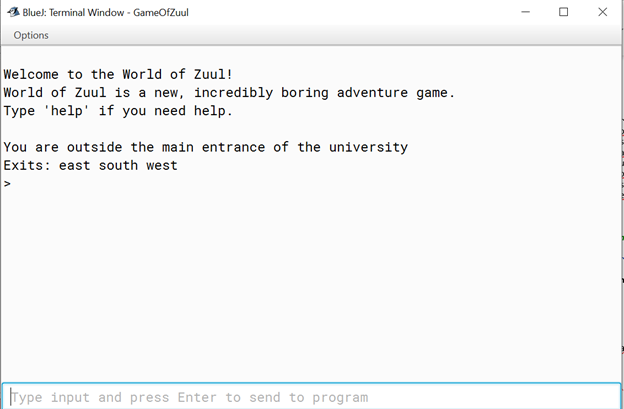

Apabila kita membuat new Game() dari Class
Game dan menjalankan void play(), program akan menampilkan kalimat pembuka:
Sekarang kita sedang berada di main

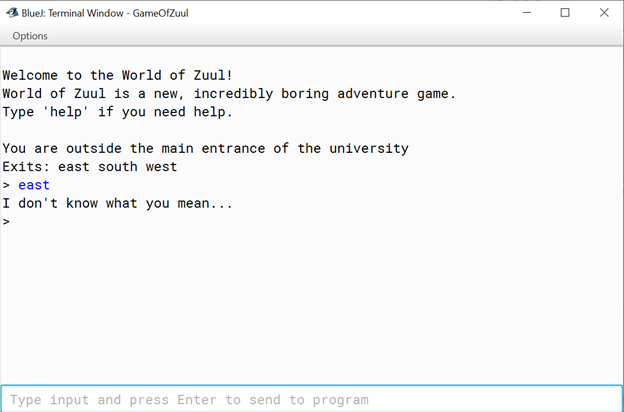

entrance of the university dan kita memiliki opsi ingin pergi kea rah mana. Mari
kita coba pergi kearah east, dan program akan menampilkan:
Ini terjadi karena kita sudah mendesain
program agar user menginputkan 2 kata dengan susuan “command” + “value”. Mari kita
coba menginput “help” untuk mengetahui beberapa commands yang tersedia.
Setelah itu, mari kita coba lagi pergi berkeliling dengan menggunakan command go.
Lalu, apabila kita menginput arah yang tidak
memiliki jalan program akan mengoutput:
Dan apabila kita ingin keluar dari game
ini, kita harus menginput “quit”. Akan tetapi, yang terjadi malah seperti ini:
Desain output seperti ini sangat berguna
agar user yang salah memasukkan input tidak akan kebablasan untuk keluar game. Lalu
untuk benar-benar ingin keluar dari game kita akan menginput:
Dan program pun berhenti.
Sekian adalah contoh program sederhana desain
class dengan menggunakan game “World of Zuul”. Apabila ada kesalah mohon
dikoreksi, terimakasih.
Komentar
Posting Komentar
